Added type-to-render!
Now users can input their own .obj files and .png into src/Models and src/Textures respectively (must be these file types, for now). Also it’s quite important that both files have the same name. Then, just input the file name into the input field, press the white button, and boom! You’ve got it rendered. Kewllllll. It required a tiny bit of tweaking the UI system, some XML tweaking and a small expansion of the UI manager. A small, finishing touch, I’m quite happy with this. Next up, I’ve got no idea, frankly. I don’t think that I’ll be able to make another devlog during Flavortown. Was fun working here with y’all!

Job 19:25
“I know that my Redeemer lives, and that in the end he will stand upon the earth.”

Added typing!
The input fields, despite needing many corrections are now focusable, and if focused - the user is able to input text. Impressive, I know. Frankly, it was quite tough to do and required a minor refactor of the UI system, but it really is for the better. Next up I’m planning to add a “render” button that will load a model with the inputted filename, and render it to the screen. Then maybe a camera… We’ll see!

Hebrews 7:25
“Jesus is able to save completely those who come to God through him, because he always lives to intercede for them.”

Added 3D!

At last, I’ve done it. I added a 3d rendering pipeline (basically altered the pre-existing scene pipeline). I added depth buffering allowing me to render the 3d object cleanly, without any weird artifacts, also altered some functions to accept 3-component vertex positions, instead of just accepting 2d. I’m not sure what to say more, to be honest. This wasn’t exceptionally hard as I’ve done stuff like this before. Next up, I’m adding a way for the user to input their own 3d model and render it.

Psalm 145:18
“The LORD is near to all who call on him, to all who call on him in truth.”

At last, it is done! (almost, the line is annoying.)
The text renderer was insanely annoying to do, and the error I mentioned in my last devlog was in fact not an upload error. I was using the ASCII codepoint instead of msdfgen’s GlyphIndex, resulting in the wrong character being drawn. I figured it out, though (with the help of Claude, sadly). Up next I’m thinking of making an input field marker in my XML parser, then using user input to render a 3D model on the screen. I don’t think it’s going to be too hard, though I might eat my words later.

Happy Easter!
Christ has Risen!

Matthew 28:6
“He is not here; he has risen, just as he said. Come and see the place where he lay.”

Holy fuh. This is my biggest devlog so far, and by biggest I mean most time-consuming. In fact, I still haven’t finished working on this one hell of a feature. The feature is nothing else than my beloved Text Rendering. Now don’t get me wrong, I’m really close to finishing it, and from your feedback I know that voters do not like such big devlogs, but I truly lost track of time trying to get this to work. I got to the point of the text itself rendering, but the sampled Glyphs are not the ones that should be sampled. For example, when I try to sample ‘h’ for ‘hello’, it gives me an ‘e’. Do I know why that happens? Not at all. I mean, I guess it could be coming from how I actually send the Glyph data to the GPU using image copies and all that, but I can’t be sure until I check it out for myself. I was struggling with a bunch of validation errors all along the process of implementing this, which ended in me creating another VkPipeline, another VkRenderPass, more descriptor sets, including a bindless one. That was really hard. Well, not necessarily hard, but time-consuming, yeah. It’s weird having to make a devlog mid-implementation, but eh, at least I get to yap a bit and share another Bible verse. Speaking of which,

Psalms 23:6
“Surely your goodness and love will follow me all the days of my life, and I will dwell in the house of the LORD forever.”

Added buttons!
This required some tweaking in how I handle XML and stuff, also the event system I built came in handy! The GLFW/Vulkan coordinate system discrepancy really was a pain in the ass, since I hate doing math. Next up, I’ll add actual functionality to the buttons, maybe make them look better, actually handle user input. Damn, it’s a long way to go…

1 Peter 3:15
“In your hearts, set apart Christ as Lord. Always be prepared to give an answer to everyone who asks you to give the reason for the hope that you have. But do this with gentleness and respect.”

This wasn’t much work, but certainly something very new for me. I added audio, using the OpenAL library. When I saw the name, I really got flashbacks from learning OpenGL for the first time and wanted to quit. Glad I didn’t, it was fairly simple compared to what OpenGL had to offer. The hardest thing was abstracting all the call into the Audio & Audio Manager classes, but I’ve done that before with Textures, so it was no big deal. There are no issues with the audio, just some backend stuff that is not in my control, so I could not care less, frankly. Toodles!

P.S.: I cannot be asked to set up screen recording for Linux, so enjoy this screenshot of the backend error.

Psalm 5:12
“Surely, Lord, you bless the righteous;
you surround them with your favor as with a shield.”

New bug found!!11! I’ll have to adress scene object scaling. Anyway, I added an event system! To be expanded though, I’m not sure what I’ll need in the future. Next up, some input polling, maybe an audio component, adding objects by user, yap yap yap yap…

Matthew 6:3
“But when you give to someone in need, don’t let your left hand know what your right hand is doing.”

I addressed the bugs. It was annoying to be fair, had to deal with move semantics and other really boring stuff. Glad that’s done tho, can now move on to some more juicy stuff.

Matthew 22:37-39
“Love the Lord your God with all your heart and with all your soul and with all your mind. This is the first and greatest commandment. And the second is like it: Love your neighbor as yourself.”

Not as much work. But there sure is a lot of bugs. Anyway, I did some abstracting and actually managed to create a separate class for what the user sees. A Scene Object, if you will. Next I’m planning to either address the bugs (eughhhhh) or add a way for the user to add objects themself. Does that sound fun? Not at all! Will I do it? Probably. Anyway, toodles!

1 John 5:11
“And this is the testimony: God has given us eternal life, and this life is in his Son”

This took a long, LONG Time. Holy, I’m so glad I’m done with this. What I was working on were bindless textures. These require tons of extensions and a somewhat decent graphics card. How they work is: you add alllll your textures into a single descriptor and select textures with indices (using a push constant or something), instead of swapping between desriptors or descriptor sets. This is more efficient and - after setting it up, a lot easier. This was a major pain in the ass, though and I really felt like giving up or starting over. I’m so glad I didn’t! Either way, I’m planning to add other texturing methods than bindless in the future to allow weaker cards to run the engine.

Romans 8:38-39
“I am convinced that neither death nor life, neither angels nor demons, neither present nor the future, nor powers, neither height nor depth, nor anything else in all creation, will be able to separate us from the love of God that is ours in Christ Jesus our Lord.”

A minor fix.
As you can see, contrary to the last devlog, the triangle is a bit taller! Why? Turns out, I’ve been using the same aspect ratio for the scene view as I was for the rest of the UI. Rookie mistake, innit? Either way, to fix it I just expanded my descriptor pool, created additional descriptor sets dedicated to the scene view, created new uniform buffers for those descriptor sets and bound the descriptor sets when binding the Scene pipeline. A simple fix, not gonna lie. Next up, ray tracing! yay…

Ephesians 4:2
“Be completely humble and gentle; be patient, bearing with one another in love.”

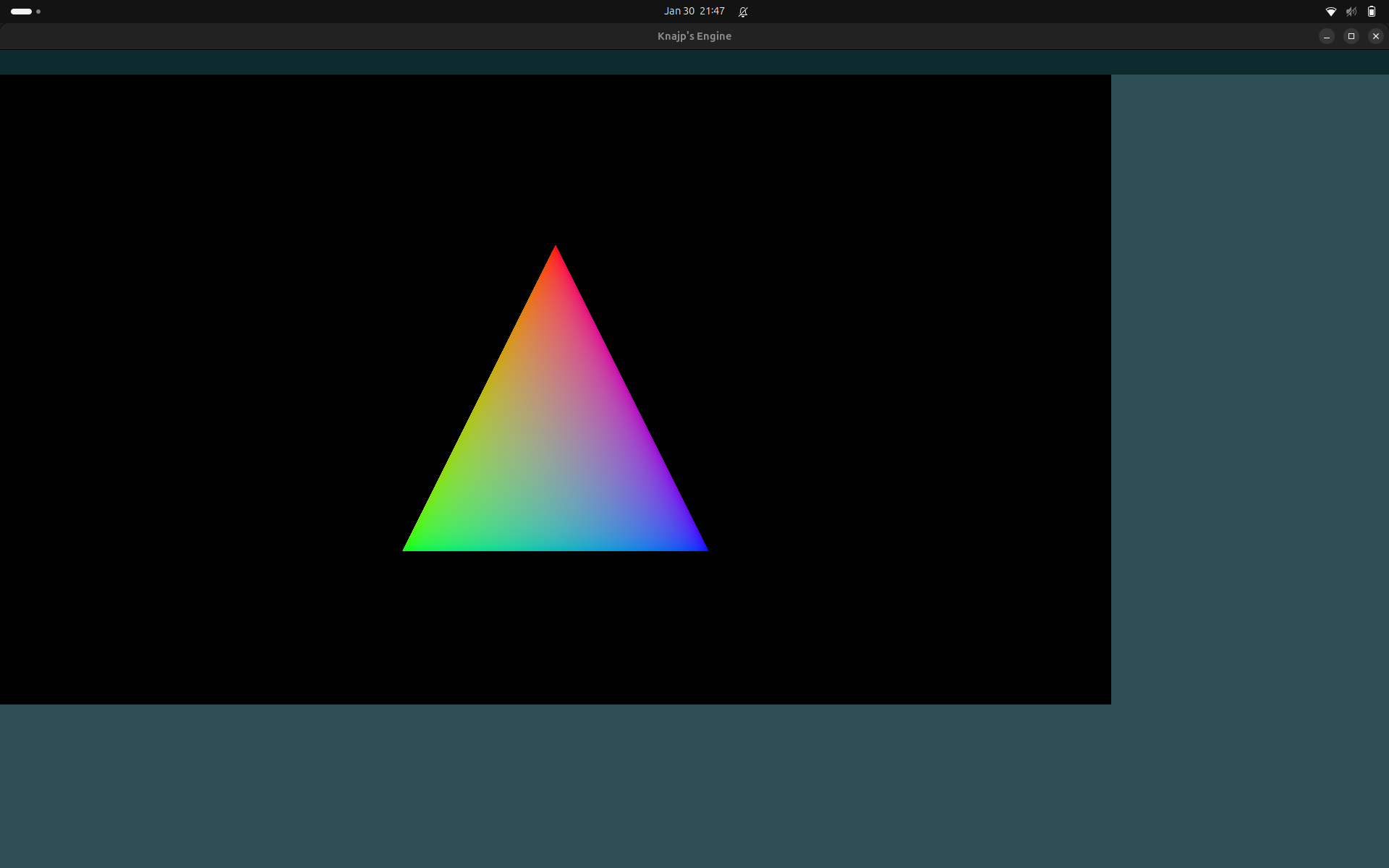

Oh my, this took a lot.

I had to create a whole another pipeline for this, and fiddle around with the viewports.
I also ran into a weird issue where 1% of the screen turned into 1.46% after it was displayed.
I don’t know how I fixed it, it just went away and we’ll keep it at that. Amazing.

John 3:16
“For God so loved the world that He gave His only begotten Son, that whosoever believes in Him, should not perish, but have everlasting life.”

Today’s a boring one.
I just improved the XML parser a bit, which did take WAY longer than I wanted it to take.
Oh well.

Hi!

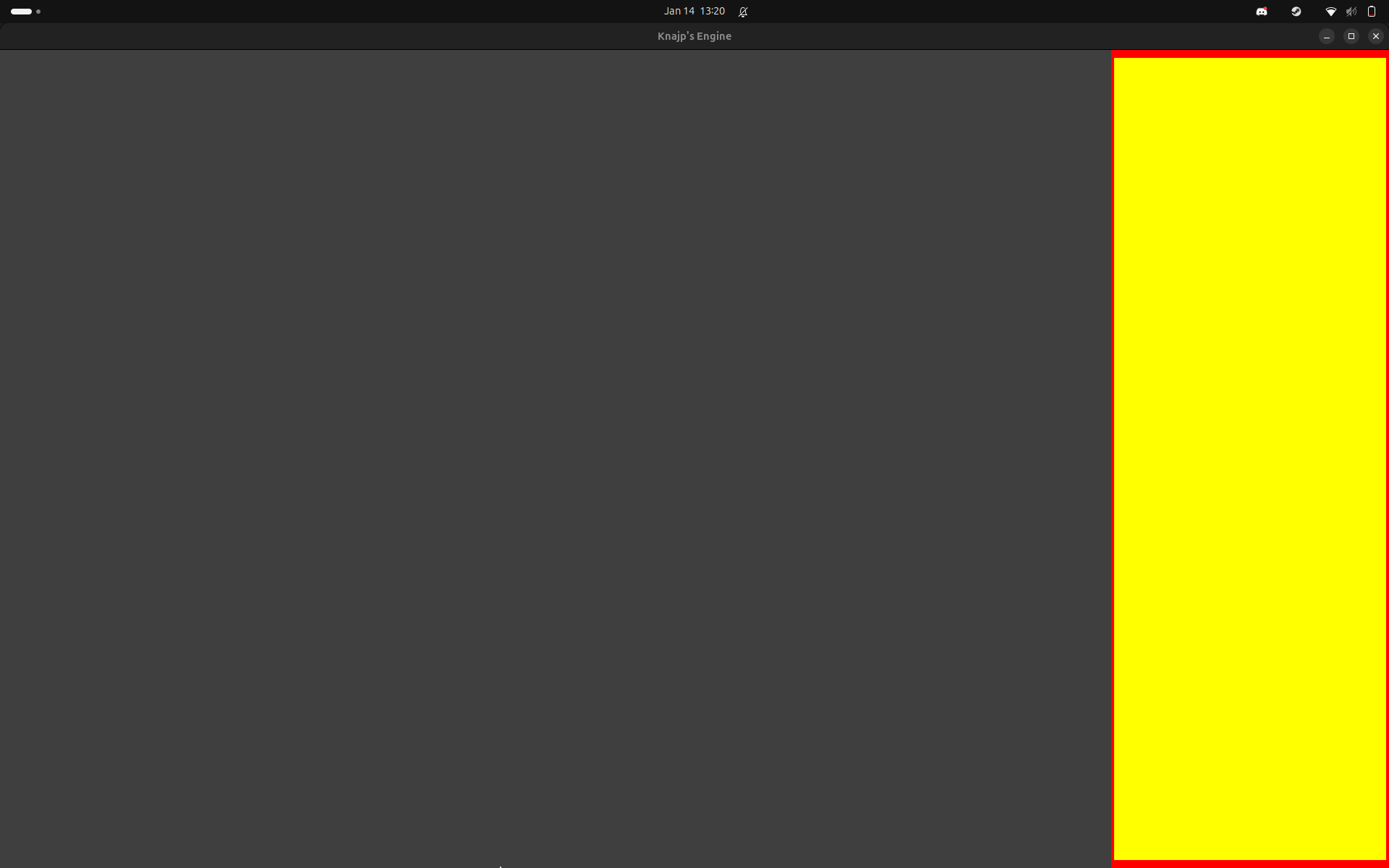

I’ve finished working on the XML parser (for the most part, i can only render “Frames” for now).
This was quite a challenge, requiring me to consider multiple solutions to various problems.
I suppose the next step would be to add buttons or stuff.

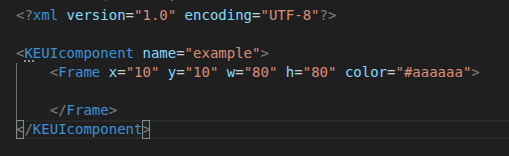

This was rather long, and I hated every second of it. Eh, I guess you learn through pain. The result is underwhelming nonetheless. What I’ve done is I made a very basic XML data parser using pugixml. Sorting and figuring the data out was a real pain. To be fair, I’m still unsure whether it works. Hopefully it does. I hope the next devlog will show the data being implemented.

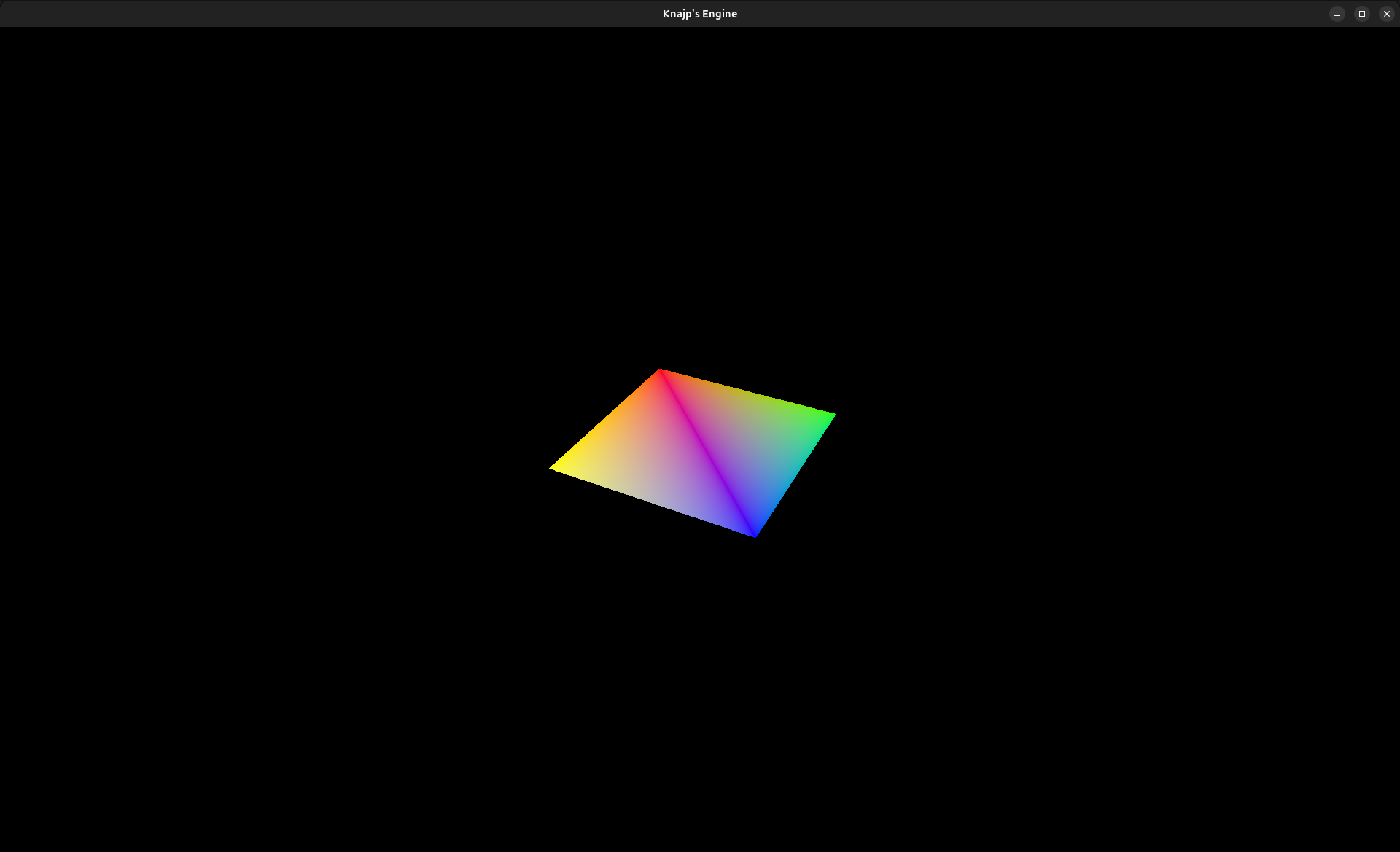

Had to install NSight for this one. I added Uniform buffers, descriptor sets, etc. This allows me to translate, rotate both the geometry and the camera! Now that’s fun. It really is not. Either way, this should allow me to make a GUI, at last.

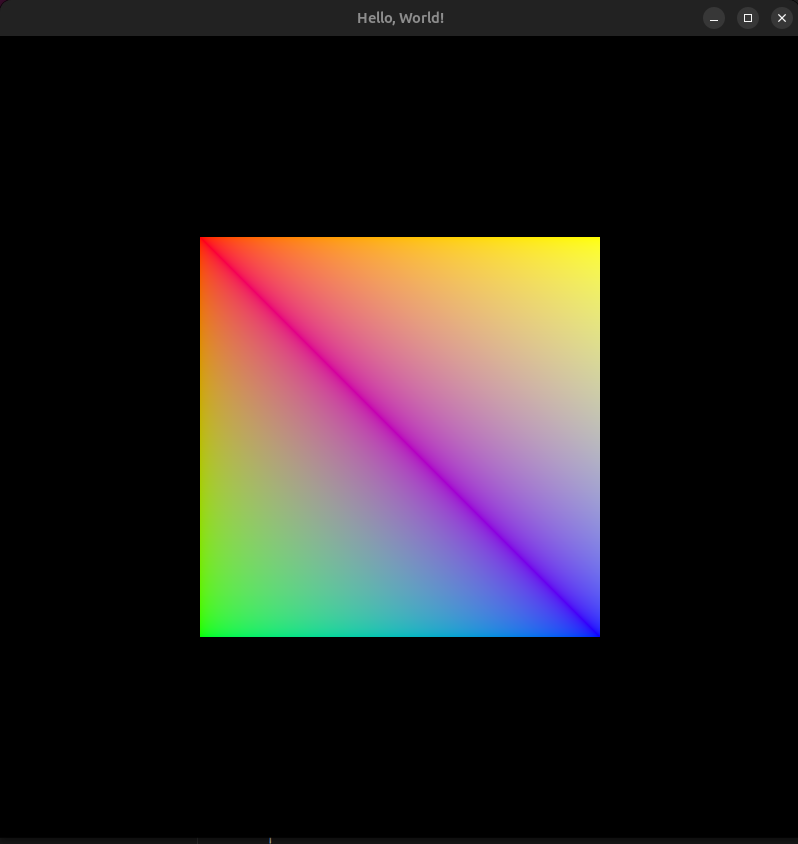

Now it’s not just a triangle, it’s a square. A rather neat one as well.

What I’ve done is optimize memory a bit by using so-called Staging Buffers. These buffers allow transferring data from the HOST_VISIBLE | HOST_COHERENT memory to the DEVICE_LOCAL memory, effectively improving GPU read times. Another thing I’ve done (also the more noticeable one) is implement index buffers! These allow me to reuse vertices and help me draw a beautiful square like this one with just four vertices instead of six.

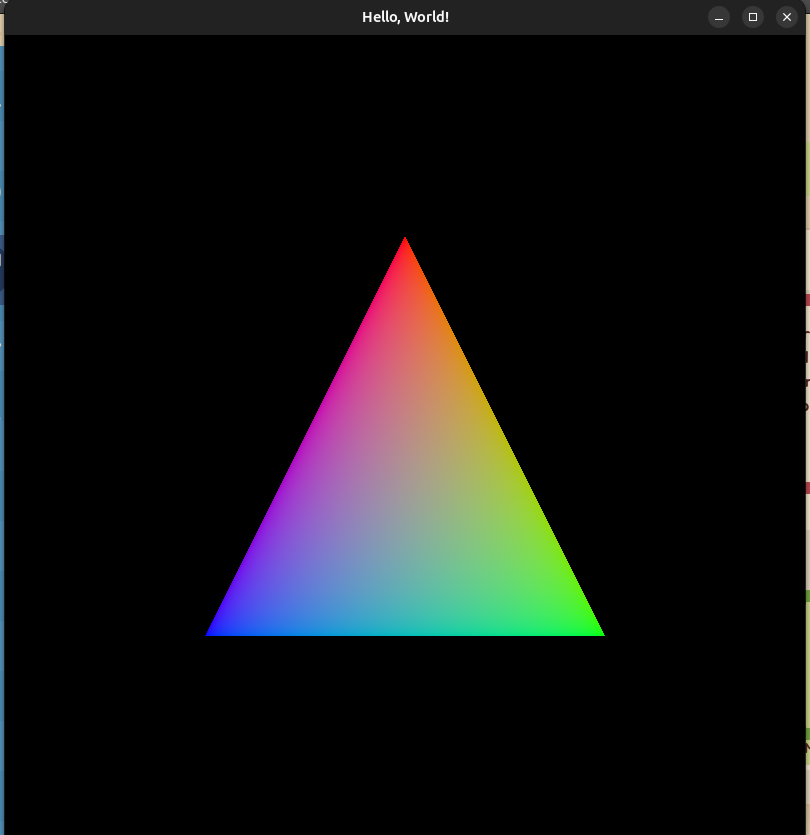

Still using the Vulkan tutorial (vulkan-tutorial.com), however in a somewhat ‘me’ way. Vulkan is honestly such a headache. I can never remember what comes next. Enough ranting, I’ve managed to get the Vertex Buffers working, and I’m getting quite the beautiful triangle. The result is kind of underwhelming for this amount of code and work, however I’m still proud of it.

I’m working on my first project! This is so exciting. I can’t wait to share more updates as I build.
