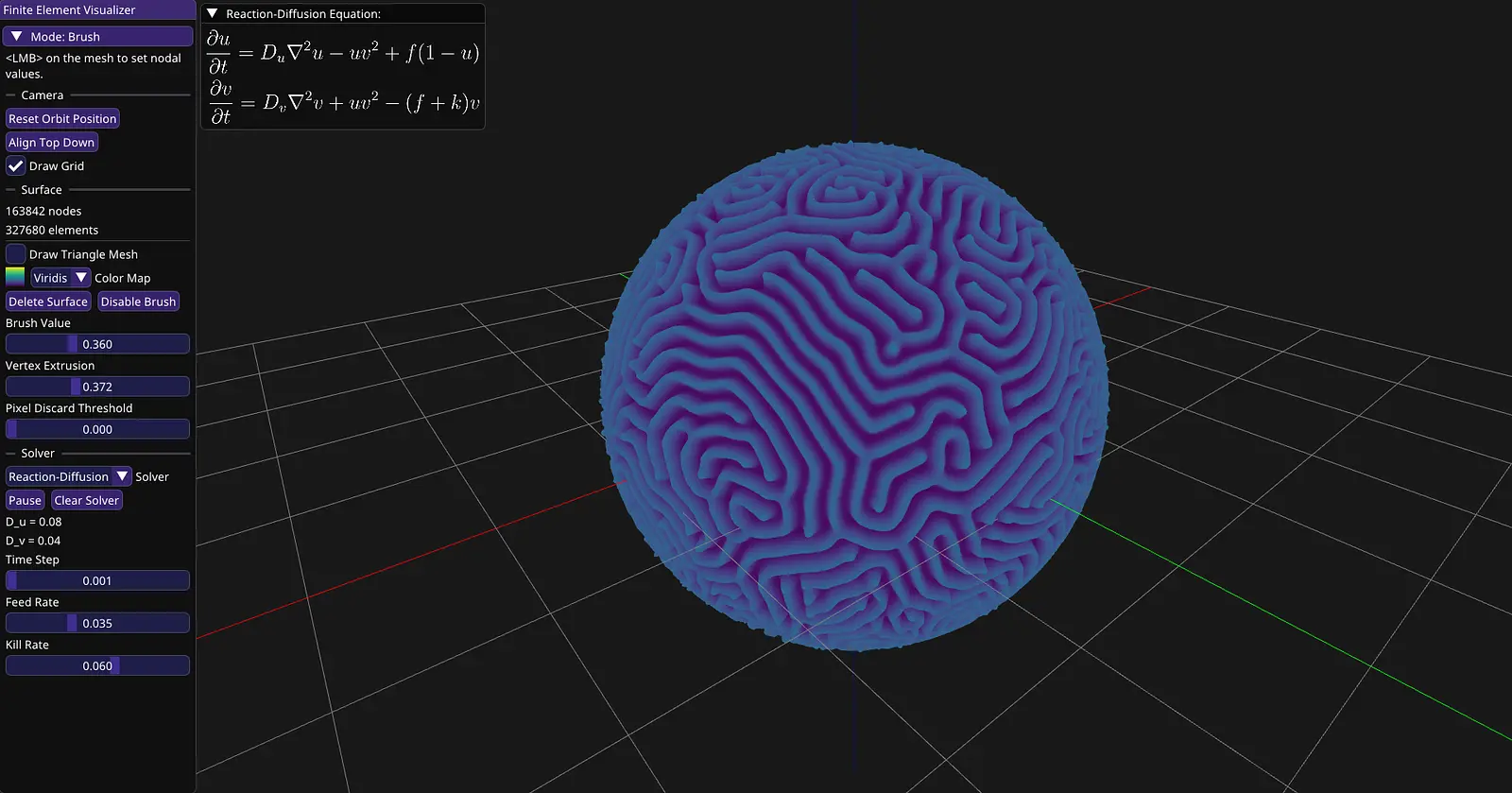

Hello! I spent the time in this devlog trying to iron out bugs that arose when testing on Windows (I develop on Fedora). I think I fixed most of them. Besides that, I rewrote the README to reflect all the new things added. Below is a screenshot that I included on the README: Gray-Scott Reaction-Diffusion equation solved on a planar mesh in the shape of the Apple logo (mostly because it’s recognizable).

I implemented a progress bar at startup since some assets (like the HDR image used for the PBR lighting) take a while to load and process. I also improved the first-time user experience by having the preset sphere mesh initialized at the start.

I mostly just spent some time fixing (and sometimes failing to fix) minor bugs. I also reorganized a lot of my old shader code. I think next on the agenda is to try adding preconditioning to my GPU conjugate gradient method implementation, write missing documentation, and write an updated README. Below is just a GIF of a glossy cube I thought looked cool. (the quality is bad but I wanted it to autoplay on this page)

I finished the physically based renderer by implementing specular image based lighting. This means that there are now reflections. Compared to how the renderer looked before (flat colors, no lighting, grey background), I’d say this a pretty big improvement.

Just a quick thing I forgot to do earlier: I added the triangle mirroring thing that I had in the exporter, into the renderer. Now the mesh can appear as if it is volumetric. I was originally going to actually generate the geometry of mirroring but I ended up just writing all of it in a vertex shader. I was able to just reuse the normals from the normal compute shader I wrote earlier.

Hello! I started off image based lighting by making a class “EnvironmentMap”. So far, I have written code to convert the equirectangular image from a .hdr file into a cubemap and then render it in the main scene.

I implemented physically based direct lighting by using the normals from the compute shader I wrote last devlog! Next, I will implement diffuse and specular image based lighting and have a little skybox which will replace the boring gray background that has been there since the beginning of the project.

I wrote a compute shader to recalculate normals for smooth shading based on the extruded vertices. I ran into an issue with race conditions since different triangles being processed in parallel sometimes add normals simultaneously. To fix this, I just used atomics. Having these normals will allow me to implement lighting in the renderer.

In this devlog I implemented the GPU solvers for the Advection-Diffusion and Gray-Scott Reaction Diffusion equations. Besides that, I mostly just fixed bugs I encountered while testing; most of them had to do with synchronization between the CPU and GPU. Now that this saga is basically over, I am going to shift gears to improving the 3D renderer with proper lighting, ambient occlusion (might make the ridges look cool), and maybe a skybox.

I spent so long debugging… programming for GPUs is not for the impatient.
Anyways, I finally got a (semi) working GPU implementation of the Conjugate Gradient Method with OpenGL compute shaders. What this means is that (hopefully) the simulation will be able to run on larger meshes much faster due to the parallel computing offered by GPUs. Below is a video of the Wave Equation solved on the surface of a torus using this new implementation.

It’s been a while! I started work on implementing conjugate gradient method (basically an iterative linear system of equations solver) for the GPU using compute shaders. While doing so, I realized that my current code structure (for the finite element method solver side of things) is pretty coupled and convoluted. So, I basically spent most of the time in this devlog experimenting with different ways to structure everything. The image below shows the structure I am currently settled on.

Hopefully I actually have some new visuals in my project next time around!

I did a lot of things over this 6 hour dev log:

• Added Neumann Boundary conditions so now the boundary edges aren’t fixed to 0 (see slide 1)
• I did some more tweaks to the UI
• I started work on the GPU implementation of the conjugate gradient method by writing a dot product procedure in a compute shader using parallel reduction (see slide 2). What’s interesting is that summing using parallel reduction is actually better for floating point precision than just summing serially.

From here, I will continue working on the GPU implementation of conjugate gradient method. I am interested to see how much of a speed up will actually be gained when compared to the CPU implementation.

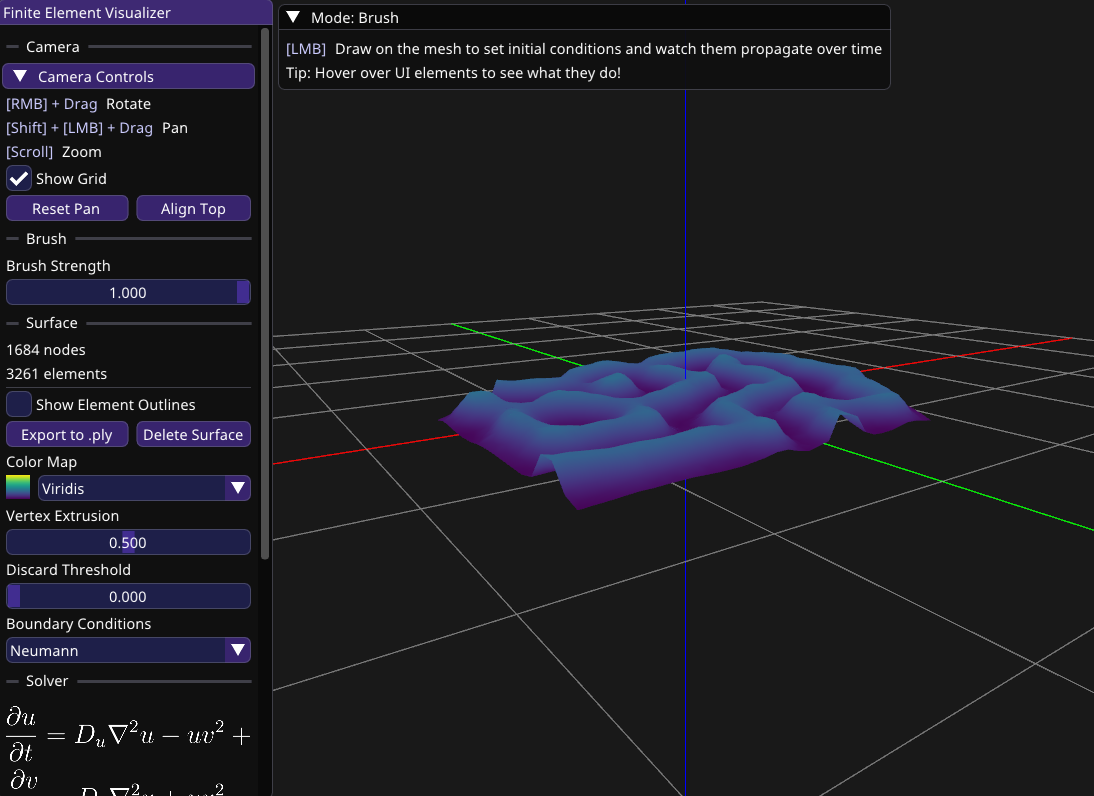

I spent most of my time revamping the UI. I changed things like button sizes and labels and added the option to select from preset meshes. I do still want to spend time on refining the UI to make sure users fully understand the flow of the app’s usage.
Image 1: General UI update
Image 2: Preset Meshes Selection List (UI is probably going to change)

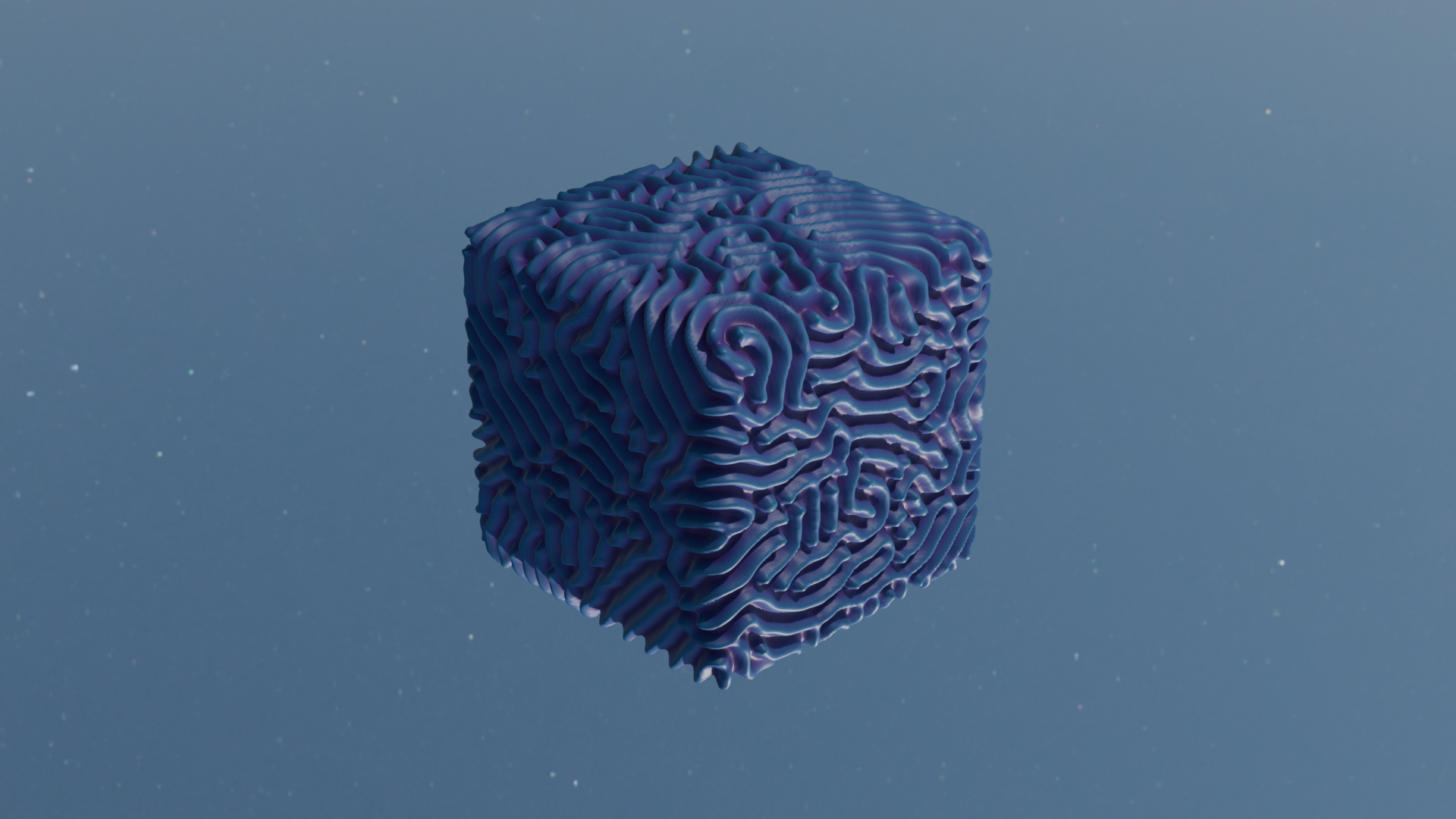

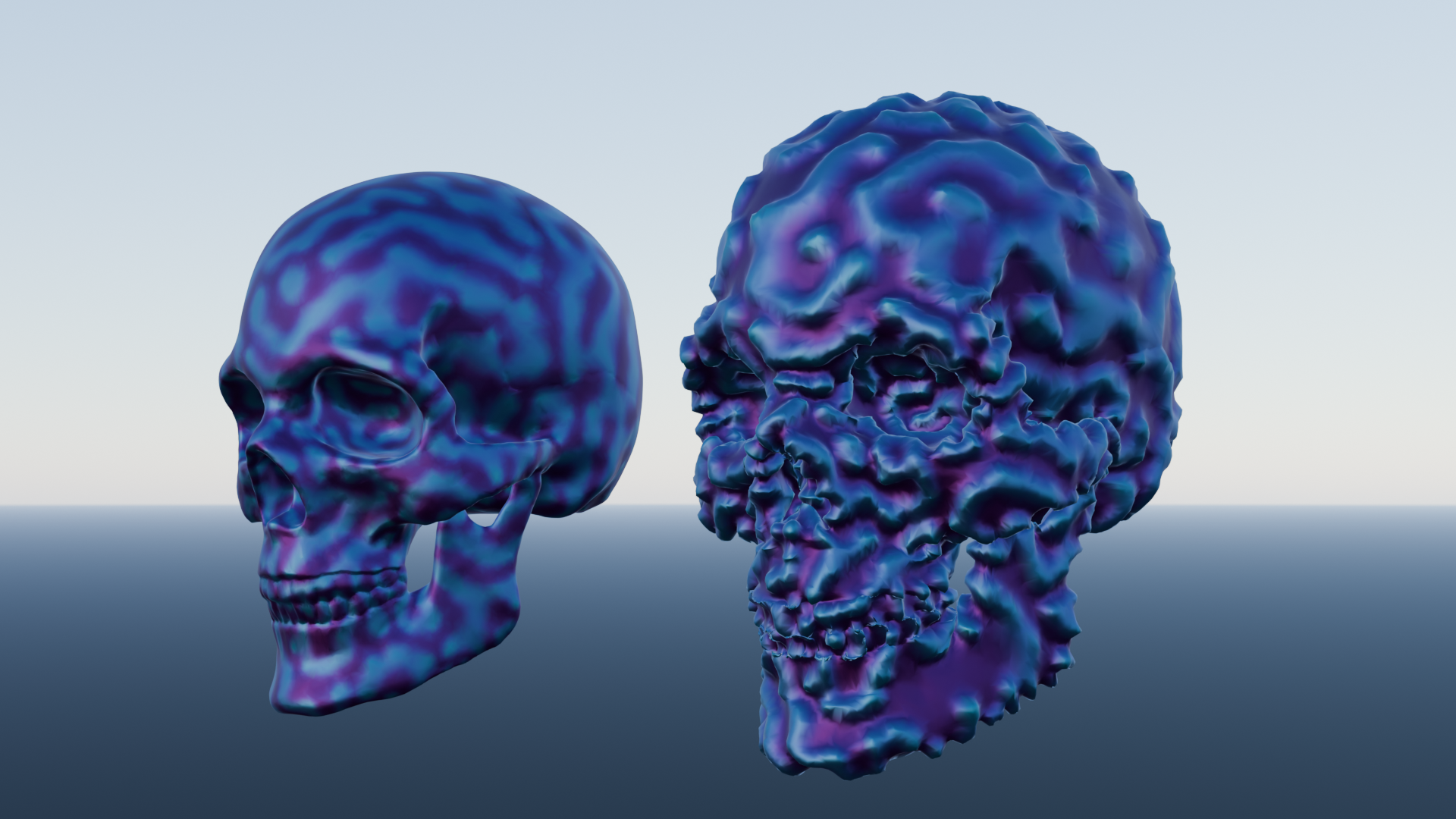

I wrote some code to export the meshes that get generated to .obj and .ply files! Based on the value of the solution at each node (3D vertex), that vertex is extruded along its normal vector and given a color based on a color map (I’m using Viridis right now). The image below is an export of the Gray-Scott Reaction-Diffusion equations solved on the surface of a cube (slide 1) and a skull mesh (slide 2), both rendered in Blender.

I wrote a quick README.md and compiled releases for Linux and Windows. I also moved the velocity vector indicator to be located next to the mouse to make it easier to define particles’ directions.

I rearranged the UI side panel, added some guidance text, implemented a boundary condition dropdown, allowed particles’ initial direction of velocity to be set by the scroll wheel, and made a visibility layer that shows amplitude alongside phase resulting in RAINBOW.

I got Gaussian Wave Packets to have initial momentum, so now I can simulate Thomas Young’s double slit experiment! I am planning on sprucing up the UI so that users can define the momentum vector of each wave packet. I also want to add the option to select from a variety of preset potential energy grids and boundary conditions.

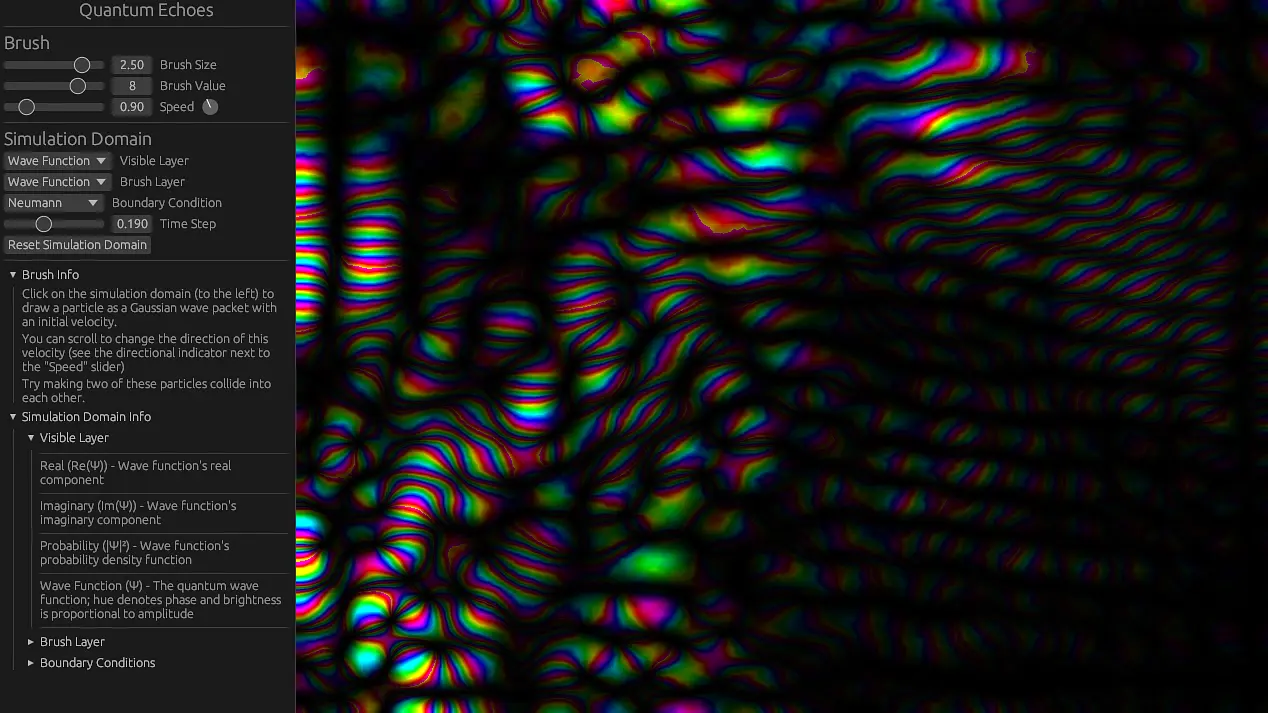

I implemented different layers so that potential energy can be defined over the simulation space. The dark blue regions in the picture below have higher potential energy and almost act as boundaries for the wave function in this case.

I implemented Schrodinger’s Equation in a compute shader :). From here, I want to add functionality to define the potential energy function and boundaries to further manipulate the wave function.

I implemented the brush tool by sending data to the GPU using Vulkan push constants. I then wrote a simple wave equation solver in the compute shader for testing. The next step will be to actually implement the Schrodinger Equation and flesh out the side panel UI.

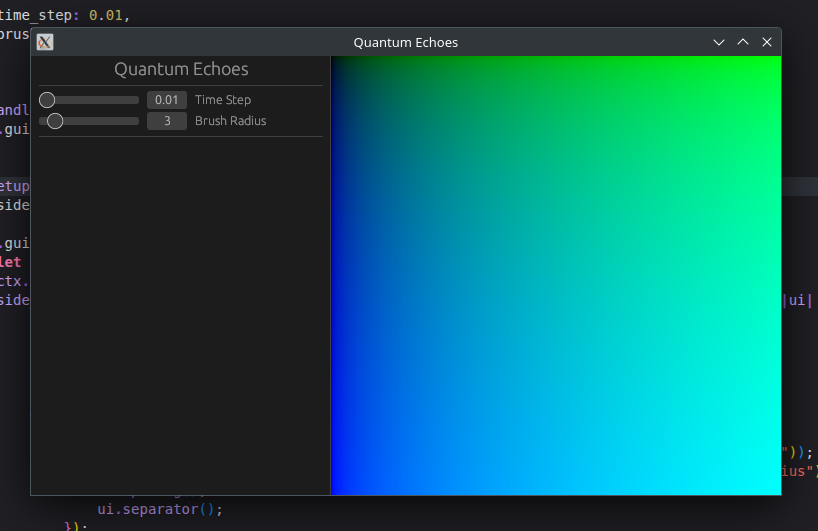

I spent some time just cleaning up code and getting acquainted with Egui by adding some UI elements. I also made it so that the side panel doesn’t overlap the viewport (the blue-green gradient part in the image below). Hopefully next devlog I’ll get the brush tool working.

I spent way too long refactoring code (but still not done) and setting up Egui with Vulkano to render a side panel for future buttons and sliders.

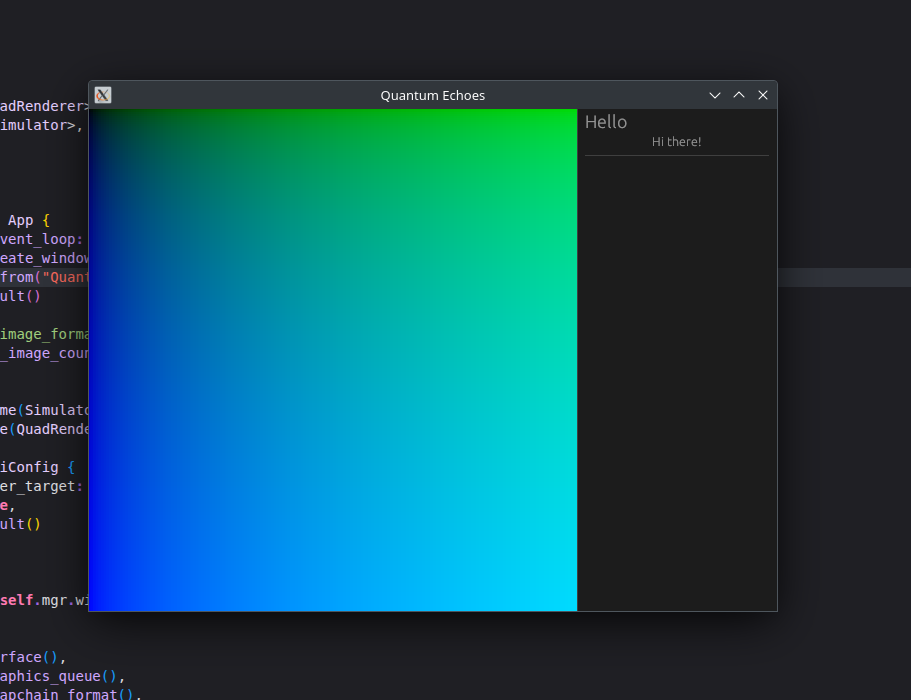

I got a quad rendered to the screen that displays the output of a compute shader. I am new to both Vulkan and Rust so it’s taking me a while to figure everything out. On the next devlog, I hope to get a simple brush tool working along with finding a good way to restructure all of my preexisting code.
