I worked a little more to log the ret of my minutes that weren’t logged. I rearrenged some vias to be more correct.
2
Log in to leave a comment
Comments
Wow very very complex
:)
Activity

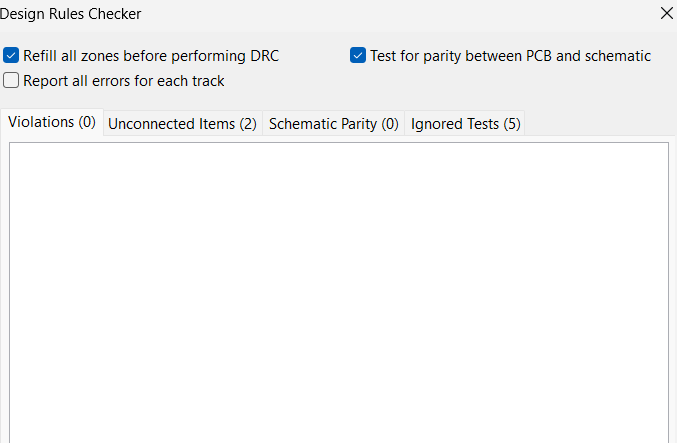

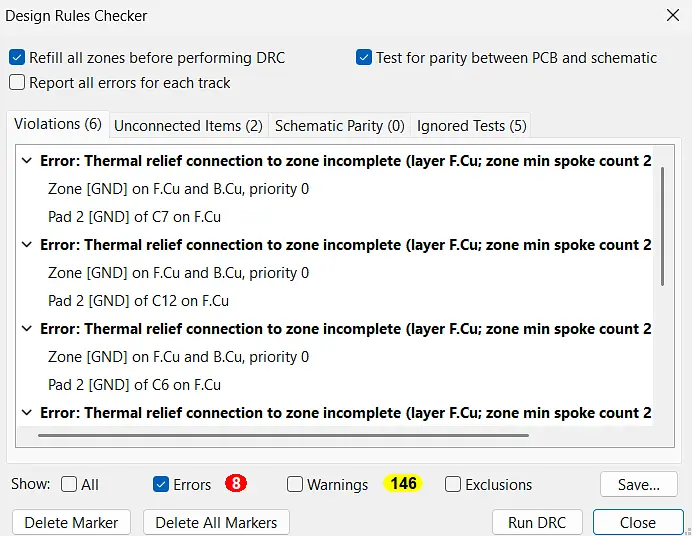

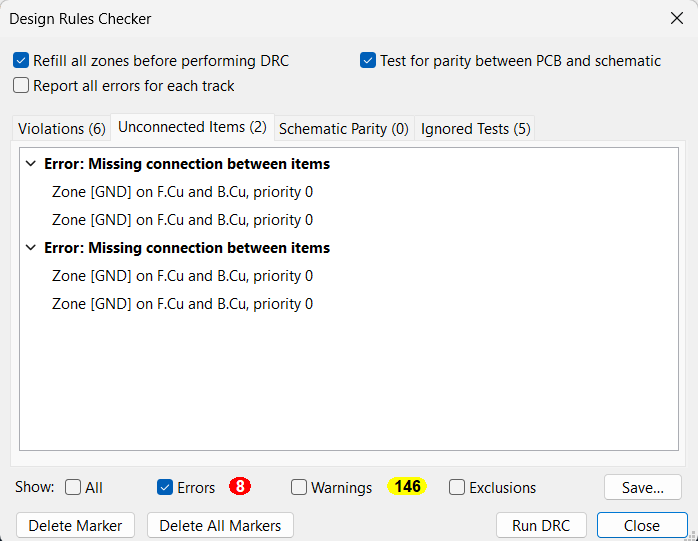

I finally resolved all the violation errors. Just 2 errors remained (they are totally unnecessary in this case).
0
Log in to leave a comment

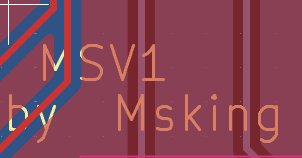

I added my signature on the board and I tried to add images, but it didn’t go well.
0
Log in to leave a comment

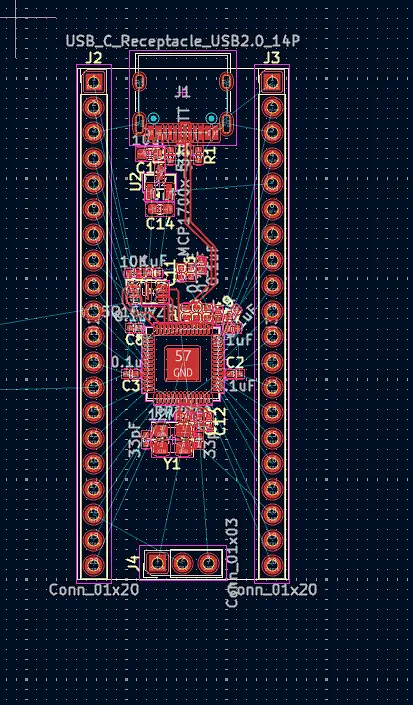

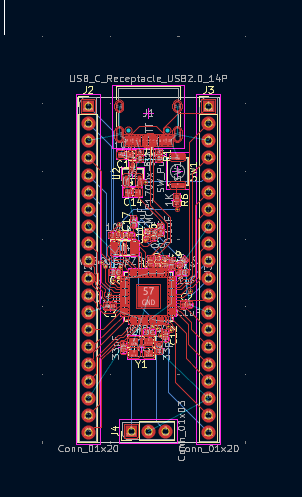

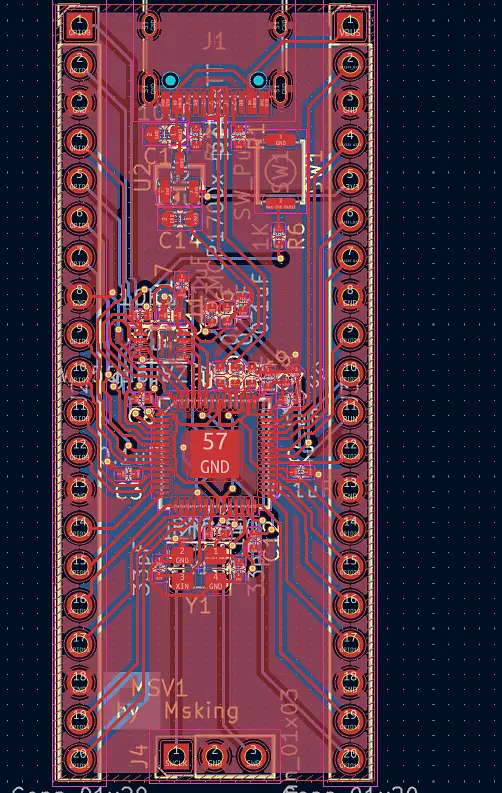

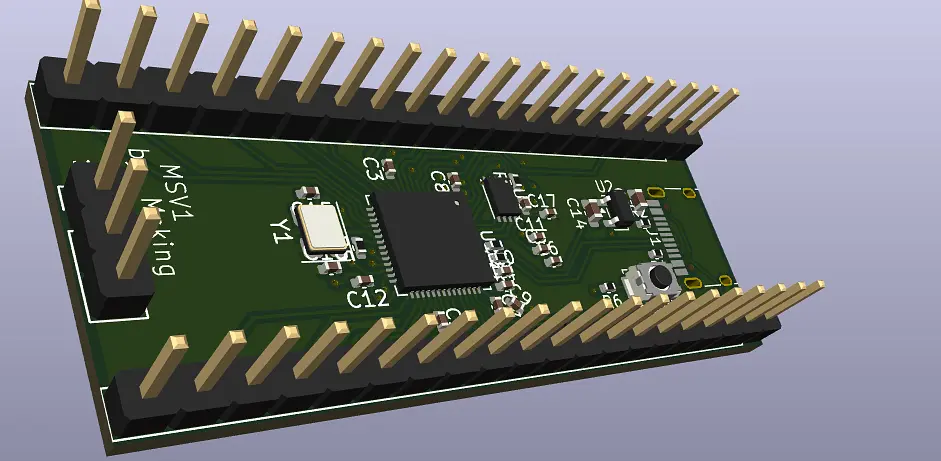

I finished all my PCB and I added a GND filling. I also got lost of any important errors from drc.
0
Log in to leave a comment

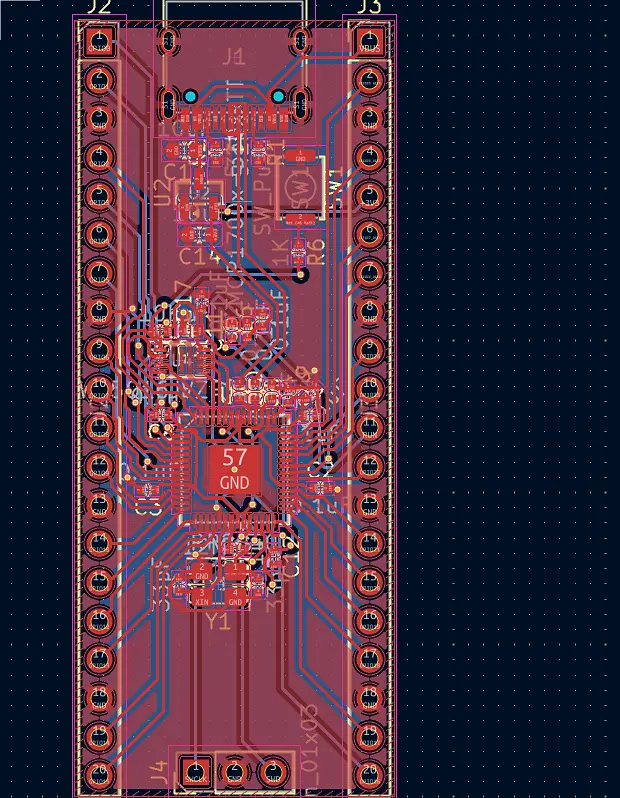

I finished tracing the routes!!!
0
Log in to leave a comment
After a ton of work, I rearranged my pieces in a more ergonomic way (meaning a layout that makes tracing easier).
0
Log in to leave a comment

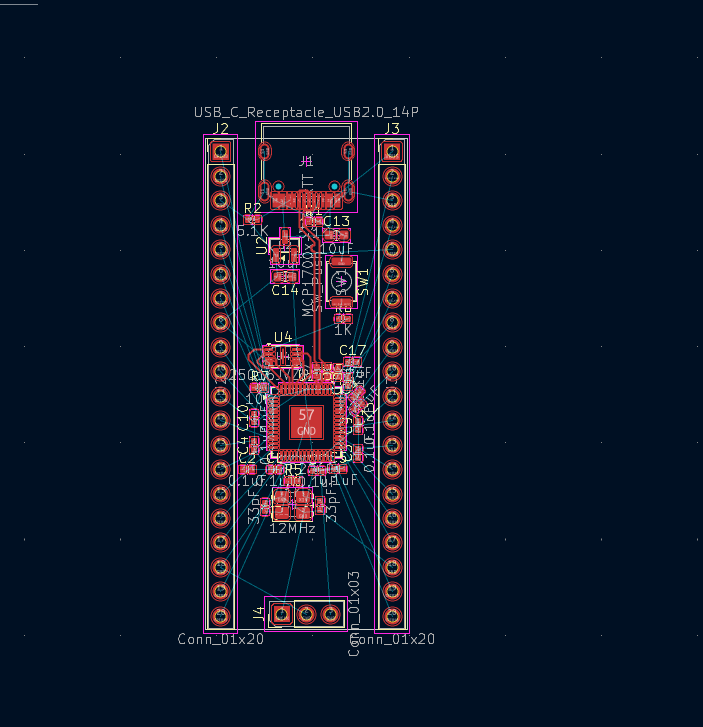

I arranged all the parts on the PCB and routed the USB-C and flash memory, although it is still a bit messy.
0
Log in to leave a comment
I changed the flash memory to a smaller one. I also arranged some of the parts on the PCB.
0
Log in to leave a comment

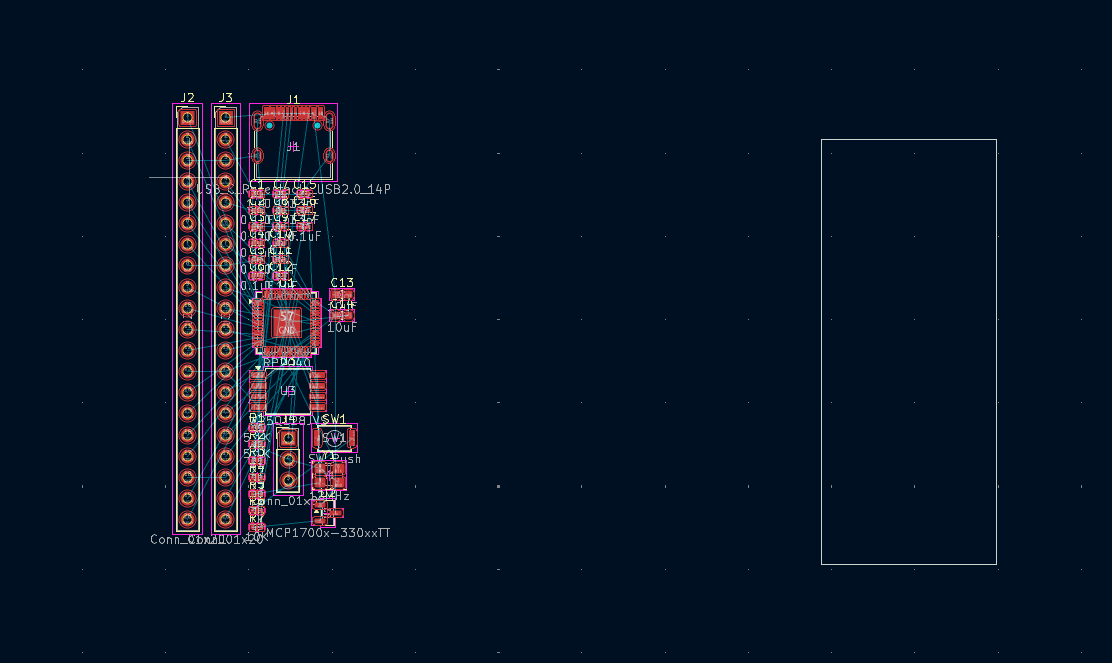

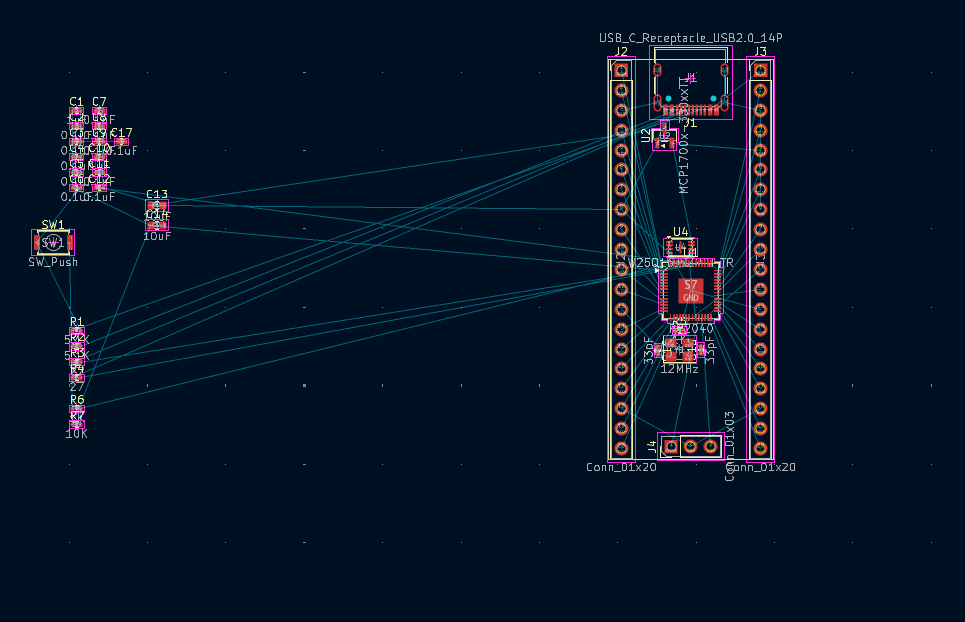

I added footprints to all the pieces, placed my components on the PCB, and created a rectangle for the board size.
0
Log in to leave a comment

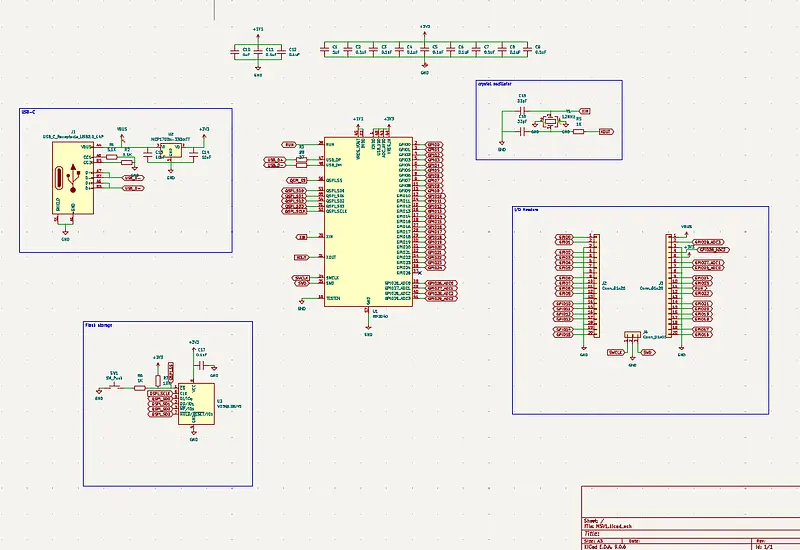

I fisnished my schematic!!!!!
0
Log in to leave a comment
I completed the schematic configuration for the USB-C port and crystal oscillator.
0
Log in to leave a comment

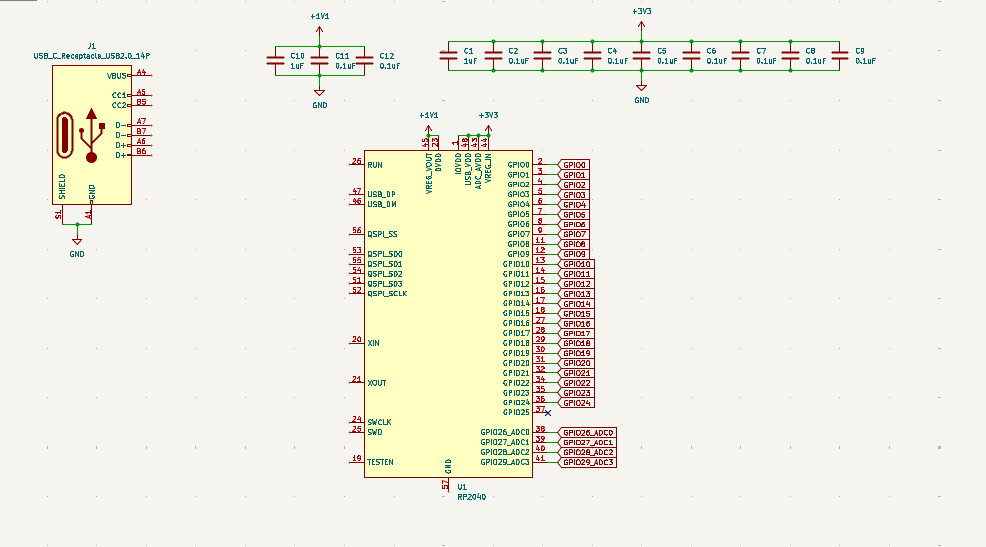

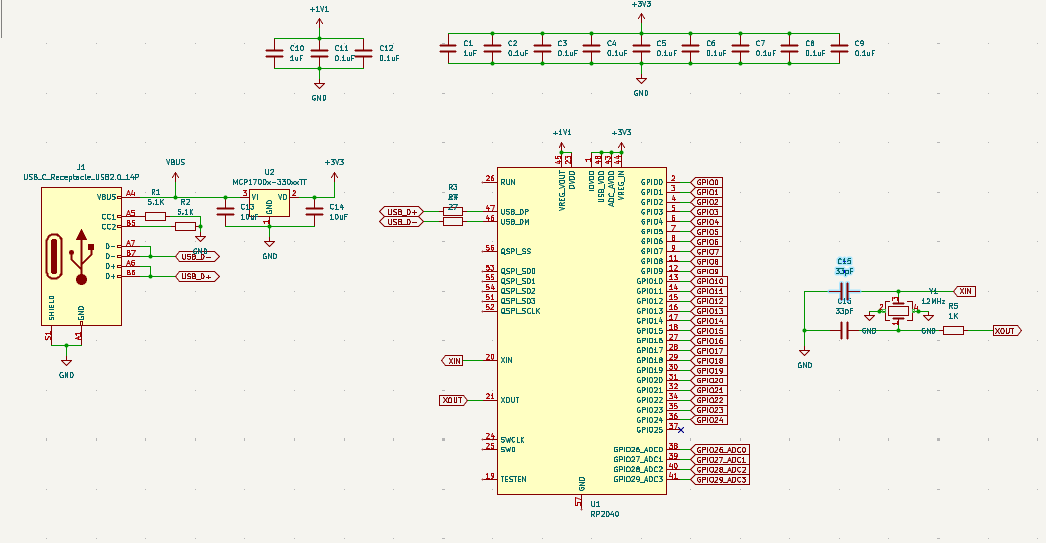

I added a RP2040 microcontroller and i created some decoupling capacitors + I added labels to the GPIO pins. I also added a USB-C port. All inside kicad schematic.
