OPTIMIZATIONS

added some optimiztions
regarding the delay to keep up with hardware frequency

and demo’ed the project
link to demo

TO BE CONTINUED!!

i am currently working with my friend to create a userspace library to interact with the oled display (draw in specific pixels, draw circles or maybe even a raycasting/raymarching renderer)

DEBUGGING, FIXING, AND MORE DEBUGGING!

after a long dubbiging session and a frustrating clash with the rust pr_info!() function (that will fucking corrupt your memory if you dont put a \n at the end)
i got the screen to work!
and by working i DO NOT mean only lighting up and showing random pixles- i mean i can write to the oleds misc device file and it will display it on the oled!
this is a demo vid of the display

so basically the driver is done but there are some optimizations to be done so next devlog will prb be the last before shipping

AHHHHHHH THE SCREEN IS ONNNN

the module has succesfully loaded to kernel and opened a misc device under /dev, now it has also sent the init sequence to turn on the screen!!!!!
(the screen shows random data because nothing has been written to it yet)

also i forgot to mention in the last devlog:

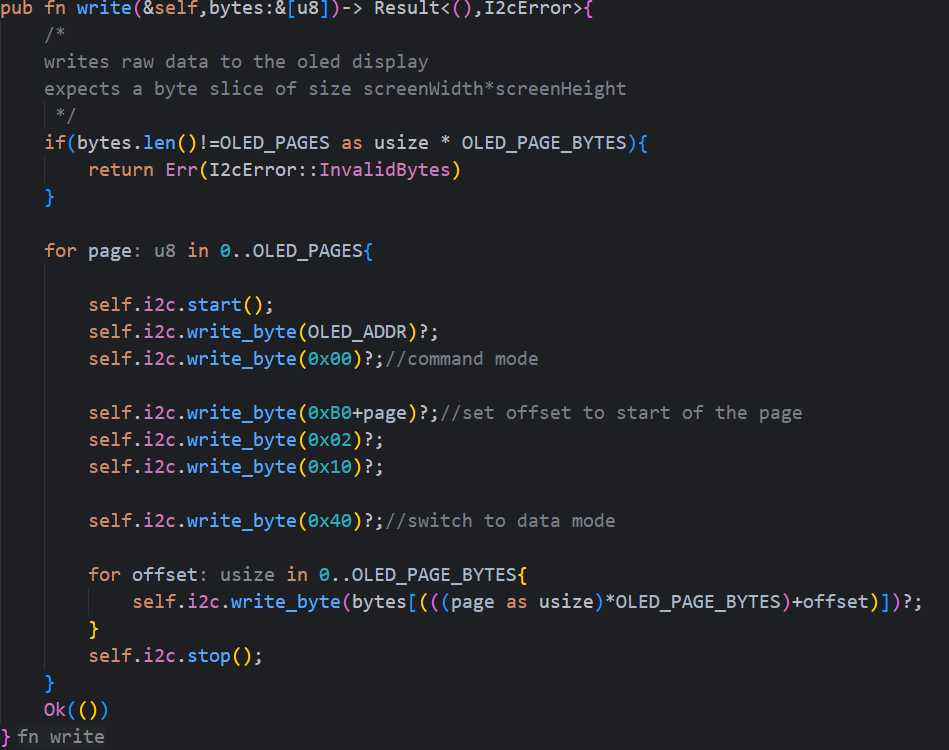

i implemented the write function that hooks write syscalls to the misc device and sends the data to my i2c handler to be written onto the screen (not tested yet but fully implemented)

kind of a stupid minor devlog

BUT I GOT THE MISC DEVICE UP AND RUNNING RAAAHHHH

GATEWAY TO USERLAND IS WIDE OPEN

INIT FUNCTION

so i finished writing the init function- most of the time spent since the last devlog wasnt on the function itself rather researching my oled display and its requirements
also i had to research how a communication sequence looks like for this specific oled, the communication itself happens over i2c but the specific detaild about how and when to send data differs from display to display,

Changelog

• converted userspace buffer to kernel memory on write callback & other small fixes
• Add GNU General Public License v3
• Update README.md
• Update README with project details
• Add initial project description to README
• initial commit

PROJECT UPDATE!

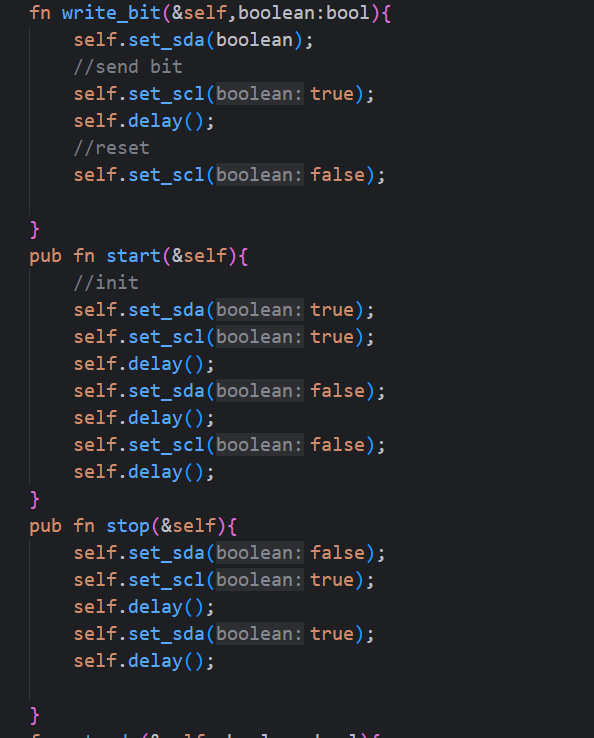

since the last devlog i had implemented the basic i2c interactions:

• i2c start
• i2c stop
• write byte
  this paper was really helpful
  i have also set up a device file to let userspace processes interact with my driver.
  basically the driver “hooks” all write calls to that specific file in the /dev folder and passes the buffer to my driver (i also need to copy the buffer to kernel memeory) and then it writes to the screen.

the image below is the first basic 8 byte transfer that happnens when initialising an i2c connection.

FIRST GPIO INTERACTION

so, most of the progress i did was out-of-editor so time isnt really logged accuratly BUT:
i finally loaded my first kernel module that interacts successfully with the physical gpios

gpio 2 and 3 are on my default and i wrote a module to turn 2 off.
so gpio interaction is set up and ready to develop

also:

when using the rpipins tool (the one used in the image above) for mapping out all the gpio pins, i came across a bug that causes the app to crash so i lowkey fixed it and opened a pull request to merge my fix.

FINISHED DEVELOPMENT ENV SETUP!!

ok, so i had to do a lot of stuff before starting to work on the driver itself!

• i had to recompile the raspberry pi linux kernel because it did not have rust support (i develop the driver in rust)
• i also had to config my ide to recognise the kernel crate (which is not by default in crates.io) so i had to clone the tree locally
• created a script to automate deployment (compilation - > copy module with scp to raspi-> ssh to raspi->remove previous module ->load new module)

loaded my first kernel module!!

the image attached is the kernel logs!!!
(ofc the output was through an ssh connection to the raspi)
